| Description/Models | Model 1 | Model 2 | Model 3 | Model 4 |
|---|---|---|---|---|

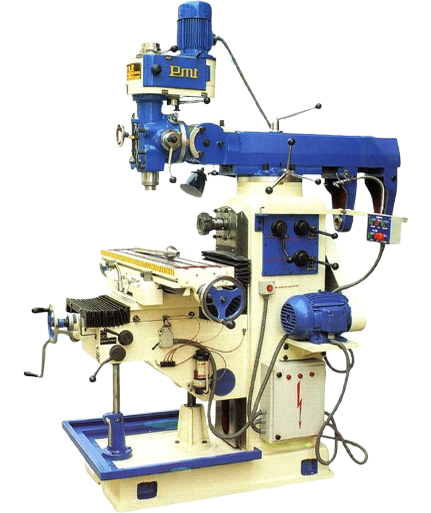

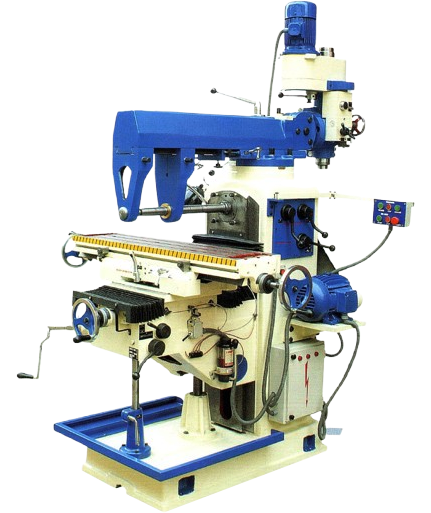

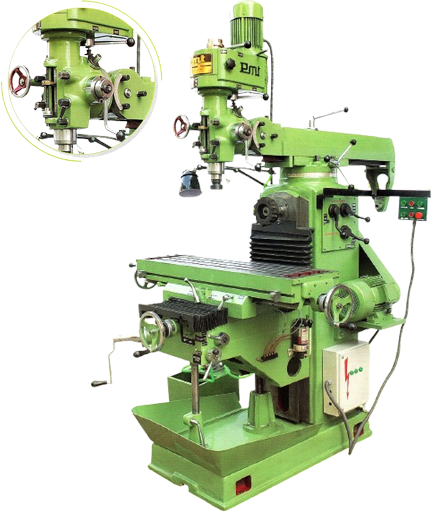

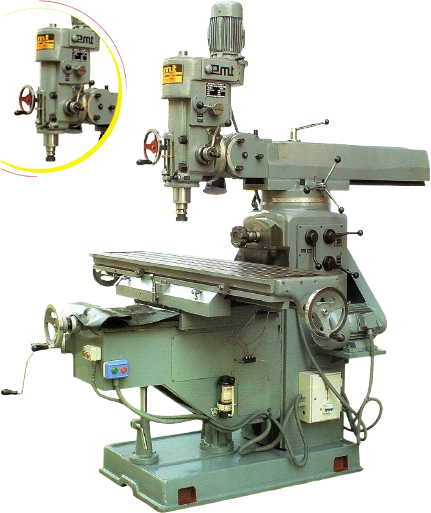

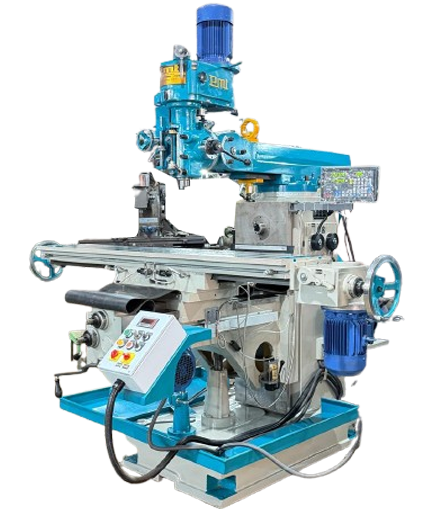

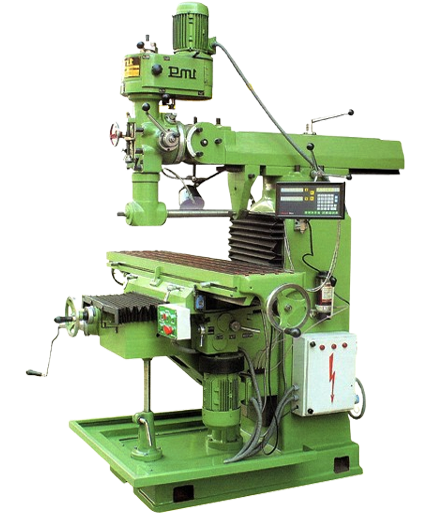

| Technical Specifications of Ram Turrent & Universal Milling Machine | 10.5" x 42" 220 x 975mm | 12" x 54" 260 x 1200mm | 14" x 60" 325 x 1470mm | 15" x 72" 365 x 1700mm |
| Table Size of Vertical & Horizontal Drive Milling Machine | 265 x 1070mm | 300 x 1370mm | 350 x 1525mm | 380 x 1725mm |
| Longitudinal Travel | 650 | 850 | 1050 | 1200 |
| Vertical Travel | 450 | 500 | 550 | 550 |
| Cross Travel | 325 | 370 | 445 | 500 |
| Table To Spindle | 0 Min. | 0 Min. | 0 Min. | 0 Min. |
| Head Tilt 45° Up & Down | --do-- | --do-- | --do-- | --do-- |
| Head Move 90° Left & Right Horizontal | 0 Min. | 0 Min. | 0 Min. | 0 Min. |
| Quill Spindle Diameter | 90mm Hardened & Grinded | 90mm Hardened & Grinded | 90mm Hardened & Grinded | 90mm Hardened & Grinded |
| Head & Ram Rotate Parellel on body | 360° | 360° | 360° | 360° |
| Quill Spindle Travel | 125mm | 125mm | 125mm | 125mm |
| Ram Travel | 250 | 300 | 440 | 440 |
| T-Slot | 3-12mm | 3-16mm | 4-16mm | 4-16mm |
| Motor | 1 H.P. | 2 H.P. | 2 H.P. | 2 H.P. |
| No. of Speeds | 8 Min. 75 RPM Max. 3000 RPM | 8 Min. 75 RPM Max. 3000 RPM | 8 Min. 75 RPM Max. 3000 RPM | 8 Min. 75 RPM Max. 3000 RPM |
| Max. Weight of Work Piece | 250 Kg. | 750 Kg. | 1000 Kg. | 1500 Kg. |
| Net Weight of Machine | 1050 Kg. | 1550 Kg. | 1850 Kg. | 2400 Kg. |
| Overall Height, Width & Length | 1800 x 1200 x 1300 | 2100 x 1500 x 1800 | 2200 x 1764 x 2000 | 2200 x 2050 x 2100 |
